Mud Agitator

YZ Series mud agitator adopt the turbo and worm gear-down, with the advantage of large torque transmission, smooth opearation, performance reliable etc. It has two kinds of installation method: horizontal and vertical.

mud agitator

Features and Benefits of BW Mud Agitator

1.Small footprint without skid.
2.Helical-Bevel gearbox.
3.Motor can be horizontal or vertical.
4.Longer usable life on motor and gear box.
5.Require less space also easy to handle.
6.High efficiency, low noise, low operating temperature.
7.Adaptable for different application.
8.Painting: Heavy anti-corrosion paint adopt national famous Dewei Brand
9.Spraying Processing: grinding and sandblasting；with base coating, middle coating and finish coating.

Parameters of Mud Agitator

Model	BWJBQ5.5	BWJBQ7.5	BWJBQ11	BWJBQ15
Power	5.5Kw	7.5Kw	11Kw	15Kw
Impeller Speed	60/72RPM	60/72RPM	60/72RPM	60/72RPM
Impeller Dia	600mm	600mm	700mm	700mm
Rations	25:01:00	25:01:00	25:01:00	25:01:00
Dimension	870×600×560mm	906×600×560mm	1075×650×630mm	1170×720×685mm
Electric specs	380V/50Hz or 460V/60Hz
Shaft Length	According to tank inner depth
Remark	Explosion Proof Motor,Shaft Stabilizer Available Customized Impeller Diameter Available

Shale Shaker: BWZS70-3P VS Swaco Mongoose Pro

As everyone knows, MI-Swaco is one of the most professional solid control equipment manufacturer from USA; BW solidscontrol is the most professional solid control equipment manufacturer in China. When compared with each other, who could win? Let’s find out an example by certain model products , shale shaker : BWZS70-3P and Swaco Mongoose Pro.

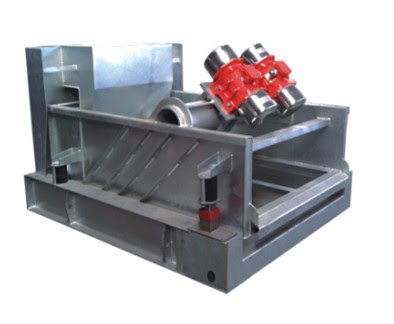

BWZS70-3P shale shaker

BWZS70-3P

Swaco Mongoose Pro

Anyway,BWsolidscontrol and MI-SWACO both are most popular supplier of solids control equipments in the world,

Desilter Cleaner

BW-CNQ series mud desilter is the third phase solids control equipment to treat the drilling fluids, and improve the performance of drilling mud, can combined with desander cleaner. The most common cone is ”4 or 5” , mainly separate size of 15-47μm solids particles out from drilling fluids. According to clients’ treating capacity can choose the number of cones.

BW Desilter Cleaner

Features & Benefits of BW Desilter Cleaner

1. Adopt ANSNy limited elment analysis, optimize structure.
2. Heat treatment on complete deck, grinding sand, pickling phosphating and hot dip galvanizing.
3. Painting: Heavy anti-corrosion paint adopt national famous Dewei Brand.
4. Vibration motor is form Italy OLI.
5. Electrinic control system if from Huarong brand or Helong brand explosion-proof eletronic switch.
6. High strength compound rubber material used to reduce shocking
7. Cones adopt high wearing-resisting polyurethane and High copy Derrick structure
8. Inlet and outlet adopt fast joint connection.

Parameter of Desilter Cleaner

Model	BWCNQ100-4N	BWCNQ100-8N	BWCNQ100-10N	BWCNQ100-12N
Screen area	1.0m²(600x1600mm)
Capacity	≤60m³/h	≤120m³/h	≤150m³/h	≤180m³/h
Cone Size	4"(cyclone each 12~15m3/h)
Cone number	2~12 swirlers，According to the capacity of the selection the swirler
Matching Pump	SB4×3-13J（15Kw)	SB5×4-12J (37Kw)	SB5×4-14J (45Kw)	SB6×5-13J（55Kw)
Inlet Size	75mm-150mm
Outlet Size	125mm-200mm
Separation Size	15-47μm

MONGOOSE Shale Shaker VS Flo-Line® Cleaner 503 Drying Shaker

Swaco Mongoose Shale Shaker and  Derrick FLC 503/504 drying shaker are widely known as top solids control equipments . Swaco and Derrick are both well known all over the world. They are specialist on solids control in many industry such as oil and gas well drilling, HDD, civil industry, mining industry, etc. Swaco Mongoose and Derrick FLC 503/504 drying shaker  have much difference specifications, such as shaker screen, dimension, treating capacity. And these features results their different strength on various aspect.

Swaco Mongoose Shale Shaker can be said the best possible solids control that required what once seemed impossible, Mongoose shaker can adapt as solids characteristics change. The ground-breaking design of the Mongoose shaker allows operators to use linear motion while drilling top-hole sections where heavy, high-volume solids such as gumbo are usually encountered.

Derrick FLC 503/504 drying shaker can be configured to be used as standard rig shakers and are easily transported. The standard skids includes lifting lugs at all four corners and fork truck guides. There are optional bolt-on underflow hoppers, in both standard and low profile heights. The standard feed trough can be changed to a conventional top or weir feeder. This allows one shaker to be used as either drying shaker or a rig shaker, making it one of the most versatile shakers on the market.

BW shale shaker

MONGOOSE PRO shaker was engineered to operate in both the Capacity and Efficiency modes of operation.est results from the well confirmed the superior performance of the MONGOOSE PRO shaker. To maintain comparative control, both shakers were installed with the same parameters: deck angle (0°), screen mesh (API 140), and fluid pond coverage (75% screen coverage). During the 8 1/2 in. section at a depth of 3,300 ft (1,006 m) with an ROP of 100 ft/hr (30.4 m/hr), the MONGOOSE PRO processed a maximum flow rate of 410 GPM, or 70% of the overall circulating flow rate. Meanwhile, the control shaker processed a maximum flow rate of 293 GPM, amounting to only 50% of the overall circulating rate. Compared to the control shaker, the MONGOOSE PRO, while running in the Efficiency mode, averaged an overall 28% increase in maximum flow rate, but 20% on the well volume.

FLC 503 Drying shale shakers offer many features of the FLC 500 series shakers but at a lower cost. Powered by two Derrick Super G vibrating motors, the 503 is a 3-panel machine that operates at 7.0 Gs (Super G2 motors are available as an option). Processing rates vary from 560 GPM of a 17.8 PPG fluid using DX-A140* screens on an FLC 503. The available screening area per API RP 13C for the FLC 503 is 24.9 square foot with the Pyramid screen and 34.5 square foot with the Pyramid Plus screen.

In short, Swaco Mongoose shaker VS Derrick FLC 503/504 shaker both have done rather well. The advanced specification of Mongoose shaker is it can be switched as linear motion shale shaker and balanced elliptical motion shale shaker according to actual drilling fluids condition. While  Derrick FLC 503/504 will give you convenient maintenance and more economical cost.

BW Solids Control always set Swaco, Brandt, Derrick as learning sample and improve the short coming. Doing better and better pursue the top quality as Mi-Swaco, Nov Brandt, Derrick.

Desilter Cleaner

BW-CNQ series desilter is the third phase solids control equipment to treat the drilling fluids, and improve the performance of drilling mud, can combined with desander cleaner. The most common cone is ”4 or 5” , mainly separate size of 15-47μm solids particles out from drilling fluids. According to clients’ treating capacity can choose the number of cones.

Desilter Cleaner

Features & Benefits of BW Desilter Cleaner
1. Adopt ANSNy limited elment analysis, optimize structure.
2. Heat treatment on complete deck, grinding sand, pickling phosphating and hot dip galvanizing.
3. Painting: Heavy anti-corrosion paint adopt national famous Dewei Brand.
4. Vibration motor is form Italy OLI.
5. Electrinic control system if from Huarong brand or Helong brand explosion-proof eletronic switch.
6. High strength compound rubber material used to reduce shocking
7. Cones adopt high wearing-resisting polyurethane and High copy Derrick structure
8. Inlet and outlet adopt fast joint connection

Parameter of Desilter Cleaner

Model	BWCNQ100-4N	BWCNQ100-8N	BWCNQ100-10N	BWCNQ100-12N
Screen area	1.0m²(600x1600mm)
Capacity	≤60m³/h	≤120m³/h	≤150m³/h	≤180m³/h
Cone Size	4"(cyclone each 12~15m3/h)
Cone number	2~12 swirlers，According to the capacity of the selection the swirler
Matching Pump	SB4×3-13J（15Kw)	SB5×4-12J (37Kw)	SB5×4-14J (45Kw)	SB6×5-13J（55Kw)
Inlet Size	75mm-150mm
Outlet Size	125mm-200mm
Separation Size	15-47μm

Drilling Fluids and Waste Management Services

BWsolidscontrol offer one of the most comprehensive ranges of solids control equipment and services in the industry. Our equipment offering includes shale shakers, shaker screens, centrifuges, agitators, degassers and mud-mixing systems. Our services include
designing, engineering, manufacturing, system optimization,
servicing and repairing.

With an increasing focus on environmental stewardship, the industry

is committed to the safe containment and handling of drilling

waste. We share that commitment with a portfolio of equipment

to ease the concerns related to managing drilling waste, reducing

environmental compliance issues and contributing to best practices.

BWsolidscontrol

Reduction, recycling and recovery are the keys to an effective

waste management process. While it is not always possible,

we strive to recover and recycle when possible, reducing

operating costs and the impact on the environment.

BWsolidscontrol offer several treatment and disposal options to address your drilling waste needs. They are selected as part of our

Engineered Fluids Management process of identifying the

appropriate actions required—given the specific fluids type,

environmental restrictions and waste streams created.
